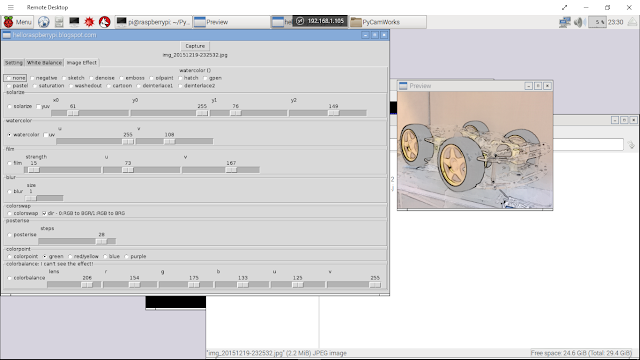

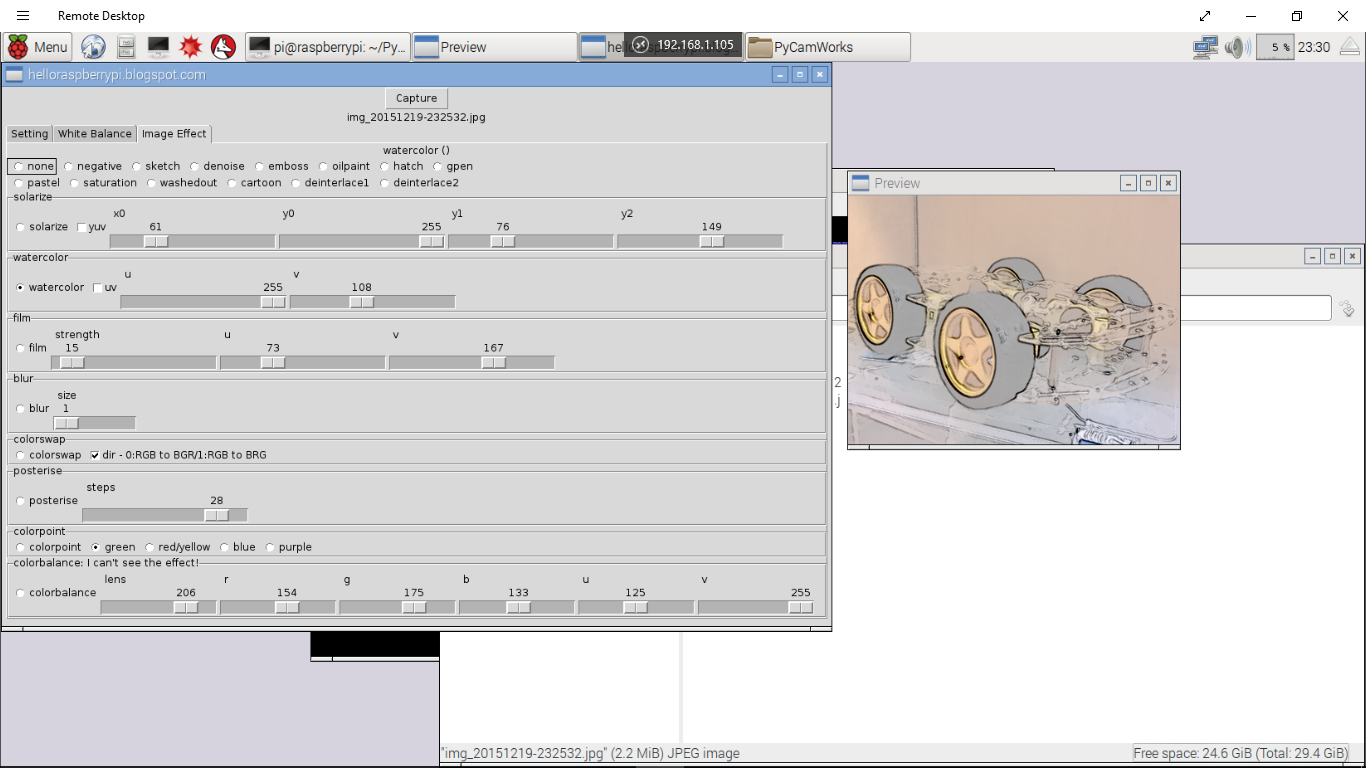

Python to capture image from Pi Camera Module, with image effects


picamera.camera Module provide function to apply various image effect. This example modified from previous post "Python to capture image from Pi Camera Module, with White Balance setting", to add feature to apply image effect.

reference: API - picamera.camera Module - image_effect


myPiCam.py
import picamera
import Tkinter as tk
import ttk
import time
from PIL import ImageTk, Image
from threading import Thread
import io
import sys
from pkg_resources import require

RQS_0=0
RQS_QUIT=1
RQS_CAPTURE=2
rqs=RQS_0
rqsUpdateSetting=True

def camHandler():
    global rqs
    rqs = RQS_0

    camera = picamera.PiCamera()
    #stream = io.BytesIO()

    #set default
    camera.sharpness = 0
    camera.contrast = 0
    camera.brightness = 50
    camera.saturation = 0
    camera.ISO = 0
    camera.video_stabilization = False
    camera.exposure_compensation = 0
    camera.exposure_mode = 'auto'
    camera.meter_mode = 'average'
    camera.awb_mode = 'auto'
    camera.image_effect = 'none'
    camera.color_effects = None
    #camera.rotation = 0
    camera.rotation = 270
    camera.hflip = False
    camera.vflip = False
    camera.crop = (0.0, 0.0, 1.0, 1.0)
    #camera.resolution = (1024, 768)
    camera.resolution = (400, 300)
    #end of set default
    #camera.start_preview()

    while rqs != RQS_QUIT:
        #check if need update setting
        global rqsUpdateSetting
        if rqsUpdateSetting == True:
            rqsUpdateSetting = False
            camera.sharpness = scaleSharpness.get()
            camera.contrast = scaleContrast.get()
            camera.brightness = scaleBrightness.get()
            camera.saturation = scaleSaturation.get()
            camera.exposure_compensation = scaleExpCompensation.get()

            awb_mode_setting = varAwbMode.get()
            labelAwbVar.set(awb_mode_setting)
            camera.awb_mode = awb_mode_setting

            if awb_mode_setting == "off":
                gr = scaleGainRed.get()
                gb = scaleGainBlue.get()
                gAwb = (gr, gb)
                camera.awb_gains = gAwb
                labelAwbVar.set(awb_mode_setting + " : "
                    + str(gAwb))

            image_effect_setting = varImageEffect.get()
            labelImageEffectVar.set(image_effect_setting)
            camera.image_effect = image_effect_setting

            if image_effect_setting == 'solarize':
                if cbSolarize_yuv_Var.get():
                    yuv = 1
                else:
                    yuv = 0
                solarize_para = (
                    yuv,
                    scSolarize_x0_Var.get(),
                    scSolarize_y0_Var.get(),
                    scSolarize_y1_Var.get(),
                    scSolarize_y2_Var.get())
                labelImageEffectVar.set(image_effect_setting + " " + str(solarize_para))
                camera.image_effect_params = solarize_para
            elif image_effect_setting == 'colorpoint':
                camera.image_effect_params = quadrantVar.get()
                labelImageEffectVar.set(image_effect_setting + " " + str(quadrantVar.get()))
            elif image_effect_setting == 'colorbalance':
                colorbalance_para = (
                    scColorbalance_lens_Var.get(),
                    scColorbalance_r_Var.get(),
                    scColorbalance_g_Var.get(),
                    scColorbalance_b_Var.get(),
                    scColorbalance_u_Var.get(),
                    scColorbalance_v_Var.get())
                labelImageEffectVar.set(image_effect_setting + " " + str(colorbalance_para))
                camera.image_effect_params = colorbalance_para
            elif image_effect_setting == 'colorswap':
                labelImageEffectVar.set(image_effect_setting + " " + str(cbColorswap_dir_Var.get()))
                camera.image_effect_params = cbColorswap_dir_Var.get()
            elif image_effect_setting == 'posterise':
                labelImageEffectVar.set(image_effect_setting + " " + str(scPosterise_steps_Var.get()))
                camera.image_effect_params = scPosterise_steps_Var.get()
            elif image_effect_setting == 'blur':
                labelImageEffectVar.set(image_effect_setting + " " + str(scBlur_size_Var.get()))
                camera.image_effect_params = scBlur_size_Var.get()
            elif image_effect_setting == 'film':
                film_para = (
                    scFilm_strength_Var.get(),
                    scFilm_u_Var.get(),
                    scFilm_v_Var.get())
                labelImageEffectVar.set(image_effect_setting + " " + str(film_para))
                camera.image_effect_params = film_para
            elif image_effect_setting == 'watercolor':
                if cbWatercolor_uv_Var.get():
                    watercolor_para = (
                        scWatercolor_u_Var.get(),
                        scWatercolor_v_Var.get())
                    labelImageEffectVar.set(image_effect_setting + " " + str(watercolor_para))
                    camera.image_effect_params = watercolor_para
                else:
                    watercolor_para = ()
                    labelImageEffectVar.set(image_effect_setting + " " + str(watercolor_para))
                    camera.image_effect_params = watercolor_para

        if rqs == RQS_CAPTURE:
            print("Capture")
            rqs=RQS_0
            timeStamp = time.strftime("%Y%m%d-%H%M%S")
            jpgFile='img_'+timeStamp+'.jpg'
            camera.resolution = (2592, 1944)    #set photo size
            camera.capture(jpgFile)
            camera.resolution = (400, 300)      #resume preview size
            labelCapVal.set(jpgFile)
        else:
            stream = io.BytesIO()
            camera.capture(stream, format='jpeg')
            stream.seek(0)
            tmpImage = Image.open(stream)
            tmpImg = ImageTk.PhotoImage(tmpImage)
            previewPanel.configure(image = tmpImg)
            #sleep(0.5)

    print("Quit")
    #camera.stop_preview()

def startCamHandler():
    camThread = Thread(target=camHandler)
    camThread.start()

def quit():
    global rqs
    rqs=RQS_QUIT

    global tkTop
    tkTop.destroy()

def capture():
    global rqs
    rqs = RQS_CAPTURE
    labelCapVal.set("capturing")

def cbScaleSetting(new_value):
    global rqsUpdateSetting
    rqsUpdateSetting = True

def cbButtons():
    global rqsUpdateSetting
    rqsUpdateSetting = True

tkTop = tk.Tk()
tkTop.wm_title("helloraspberrypi.blogspot.com")
tkTop.geometry('1000x650')

previewWin = tk.Toplevel(tkTop)
previewWin.title('Preview')
previewWin.geometry('400x300')
previewPanel = tk.Label(previewWin)
previewPanel.pack(side = "bottom", fill = "both", expand = "yes")

#tkButtonQuit = tk.Button(tkTop, text="Quit", command=quit).pack()

tkButtonCapture = tk.Button(
    tkTop, text="Capture", command=capture)
tkButtonCapture.pack()

SCALE_WIDTH = 980;

labelCapVal = tk.StringVar()
tk.Label(tkTop, textvariable=labelCapVal).pack()

notebook = ttk.Notebook(tkTop)
frame1 = ttk.Frame(notebook)
frame2 = ttk.Frame(notebook)
frame3 = ttk.Frame(notebook)
notebook.add(frame1, text='Setting')
notebook.add(frame2, text='White Balance')
notebook.add(frame3, text='Image Effect')
notebook.pack()

# Tab Setting
scaleSharpness = tk.Scale(
    frame1,
    from_=-100, to=100,
    length=SCALE_WIDTH,
    orient=tk.HORIZONTAL,
    label="sharpness",
    command=cbScaleSetting)
scaleSharpness.set(0)
scaleSharpness.pack(anchor=tk.CENTER)

scaleContrast = tk.Scale(
    frame1,
    from_=-100, to=100,
    length=SCALE_WIDTH,
    orient=tk.HORIZONTAL,
    label="contrast",
    command=cbScaleSetting)
scaleContrast.set(0)
scaleContrast.pack(anchor=tk.CENTER)

scaleBrightness = tk.Scale(
    frame1,
    from_=0, to=100,
    length=SCALE_WIDTH,
    orient=tk.HORIZONTAL,
    label="brightness",
    command=cbScaleSetting)
scaleBrightness.set(50)
scaleBrightness.pack(anchor=tk.CENTER)

scaleSaturation = tk.Scale(
    frame1,
    from_=-100, to=100,
    length=SCALE_WIDTH,
    orient=tk.HORIZONTAL,
    label="saturation",
    command=cbScaleSetting)
scaleSaturation.set(0)
scaleSaturation.pack(anchor=tk.CENTER)

scaleExpCompensation = tk.Scale(
    frame1,
    from_=-25, to=25,
    length=SCALE_WIDTH,
    orient=tk.HORIZONTAL,
    label="exposure_compensation",
    command=cbScaleSetting)
scaleExpCompensation.set(0)
scaleExpCompensation.pack(anchor=tk.CENTER)

# Tab White Balance

lfAwbMode = ttk.LabelFrame(frame2, text="awb_mode")
lfAwbMode.pack(fill="x")
lfAwbGains = ttk.LabelFrame(frame2, text="awb_gains")
lfAwbGains.pack(fill="x")

labelAwbVar = tk.StringVar()
tk.Label(lfAwbMode, textvariable=labelAwbVar).pack()

#--
AWB_MODES = [
    ("off", "off"),
    ("auto", "auto"),
    ("sunlight", "sunlight"),
    ("cloudy", "cloudy"),
    ("shade", "shade"),
    ("tungsten", "tungsten"),
    ("fluorescent", "fluorescent"),
    ("incandescent", "incandescent"),
    ("flash", "flash"),
    ("horizon", "horizon"),
    ]

varAwbMode = tk.StringVar()
varAwbMode.set("auto")
for text, awbmode in AWB_MODES:
    awbModeBtns = tk.Radiobutton(
        lfAwbMode,
        text=text,
        variable=varAwbMode,
        value=awbmode,
        command=cbButtons)
    awbModeBtns.pack(anchor=tk.W)
#--
scaleGainRed = tk.Scale(
    lfAwbGains,
    from_=0.0, to=8.0,
    resolution=0.1,
    length=SCALE_WIDTH,
    orient=tk.HORIZONTAL,
    label="Red",
    command=cbScaleSetting)
scaleGainRed.set(0.0)
scaleGainRed.pack(anchor=tk.CENTER)

scaleGainBlue = tk.Scale(
    lfAwbGains,
    from_=0.0, to=8.0,
    resolution=0.1,
    length=SCALE_WIDTH,
    orient=tk.HORIZONTAL,
    label="Blue",
    command=cbScaleSetting)
scaleGainBlue.set(0.0)
scaleGainBlue.pack(anchor=tk.CENTER)

# Tab Image Effect
#For Image effects, ref:
#http://picamera.readthedocs.org/en/latest/api_camera.html?highlight=effect#picamera.camera.PiCamera.image_effect
labelImageEffectVar = tk.StringVar()
tk.Label(frame3, textvariable=labelImageEffectVar).pack()
#-- image_effect

varImageEffect = tk.StringVar()
varImageEffect.set('none')

lfNoParaOpts1 = ttk.Frame(frame3)
lfNoParaOpts1.pack(fill="x", expand="yes")

tk.Radiobutton(lfNoParaOpts1, variable=varImageEffect,
        text='none',value='none',command=cbButtons).pack(anchor=tk.W, side=tk.LEFT)
tk.Radiobutton(lfNoParaOpts1, variable=varImageEffect,
        text='negative',value='negative',command=cbButtons).pack(anchor=tk.W, side=tk.LEFT)
tk.Radiobutton(lfNoParaOpts1, variable=varImageEffect,
        text='sketch',value='sketch',command=cbButtons).pack(anchor=tk.W, side=tk.LEFT)
tk.Radiobutton(lfNoParaOpts1, variable=varImageEffect,
        text='denoise',value='denoise',command=cbButtons).pack(anchor=tk.W, side=tk.LEFT)
tk.Radiobutton(lfNoParaOpts1, variable=varImageEffect,
        text='emboss',value='emboss',command=cbButtons).pack(anchor=tk.W, side=tk.LEFT)
tk.Radiobutton(lfNoParaOpts1, variable=varImageEffect,
        text='oilpaint',value='oilpaint',command=cbButtons).pack(anchor=tk.W, side=tk.LEFT)
tk.Radiobutton(lfNoParaOpts1, variable=varImageEffect,
        text='hatch',value='hatch',command=cbButtons).pack(anchor=tk.W, side=tk.LEFT)
tk.Radiobutton(lfNoParaOpts1, variable=varImageEffect,
        text='gpen',value='gpen',command=cbButtons).pack(anchor=tk.W, side=tk.LEFT)

lfNoParaOpts2 = ttk.Frame(frame3)
lfNoParaOpts2.pack(fill="x", expand="yes")
tk.Radiobutton(lfNoParaOpts2, variable=varImageEffect,
        text='pastel',value='pastel',command=cbButtons).pack(anchor=tk.W, side=tk.LEFT)
tk.Radiobutton(lfNoParaOpts2, variable=varImageEffect,
        text='saturation',value='saturation',command=cbButtons).pack(anchor=tk.W, side=tk.LEFT)
tk.Radiobutton(lfNoParaOpts2, variable=varImageEffect,
        text='washedout',value='washedout',command=cbButtons).pack(anchor=tk.W, side=tk.LEFT)
tk.Radiobutton(lfNoParaOpts2, variable=varImageEffect,
        text='cartoon',value='cartoon',command=cbButtons).pack(anchor=tk.W, side=tk.LEFT)
tk.Radiobutton(lfNoParaOpts2, variable=varImageEffect,
        text='deinterlace1',value='deinterlace1',command=cbButtons).pack(anchor=tk.W, side=tk.LEFT)
tk.Radiobutton(lfNoParaOpts2, variable=varImageEffect,
        text='deinterlace2',value='deinterlace2',command=cbButtons).pack(anchor=tk.W, side=tk.LEFT)

lfSolarize = ttk.LabelFrame(frame3, text="solarize")
lfSolarize.pack(fill="x", expand="yes")

tk.Radiobutton(lfSolarize, variable=varImageEffect,
        text='solarize',value='solarize',command=cbButtons).pack(anchor=tk.W, side=tk.LEFT)

cbSolarize_yuv_Var = tk.BooleanVar()
tk.Checkbutton(lfSolarize, text="yuv",
    variable=cbSolarize_yuv_Var, command=cbButtons).pack(anchor=tk.W, side=tk.LEFT)

scSolarize_x0_Var = tk.IntVar()
scSolarize_x0_Var.set(128)
tk.Scale(lfSolarize, from_=0, to=255,
    orient=tk.HORIZONTAL, length=200, label="x0",
    variable=scSolarize_x0_Var, command=cbScaleSetting).pack(anchor=tk.W, side=tk.LEFT)

scSolarize_y0_Var = tk.IntVar()
scSolarize_y0_Var.set(128)
tk.Scale(lfSolarize, from_=0, to=255,
    orient=tk.HORIZONTAL, length=200, label="y0",
    variable=scSolarize_y0_Var, command=cbScaleSetting).pack(anchor=tk.W, side=tk.LEFT)

scSolarize_y1_Var = tk.IntVar()
scSolarize_y1_Var.set(128)
tk.Scale(lfSolarize, from_=0, to=255,
    orient=tk.HORIZONTAL, length=200, label="y1",
    variable=scSolarize_y1_Var, command=cbScaleSetting).pack(anchor=tk.W, side=tk.LEFT)

scSolarize_y2_Var = tk.IntVar()
scSolarize_y2_Var.set(0)
tk.Scale(lfSolarize, from_=0, to=255,
    orient=tk.HORIZONTAL, length=200, label="y2",
    variable=scSolarize_y2_Var, command=cbScaleSetting).pack(anchor=tk.W, side=tk.LEFT)

lfwatercolor = ttk.LabelFrame(frame3, text="watercolor")
lfwatercolor.pack(fill="x", expand="yes")
tk.Radiobutton(lfwatercolor, variable=varImageEffect,
        text='watercolor',value='watercolor',command=cbButtons).pack(anchor=tk.W, side=tk.LEFT)

cbWatercolor_uv_Var = tk.BooleanVar()
cbWatercolor_uv_Var.set(False)
tk.Checkbutton(lfwatercolor, text="uv",
    variable=cbWatercolor_uv_Var, command=cbButtons).pack(anchor=tk.W, side=tk.LEFT)

scWatercolor_u_Var = tk.IntVar()
scWatercolor_u_Var.set(0)
tk.Scale(lfwatercolor, from_=0, to=255,
    orient=tk.HORIZONTAL, length=200, label="u",
    variable=scWatercolor_u_Var, command=cbScaleSetting).pack(anchor=tk.W, side=tk.LEFT)
scWatercolor_v_Var = tk.IntVar()
scWatercolor_v_Var.set(0)
tk.Scale(lfwatercolor, from_=0, to=255,
    orient=tk.HORIZONTAL, length=200, label="v",
    variable=scWatercolor_v_Var, command=cbScaleSetting).pack(anchor=tk.W, side=tk.LEFT)

lffilm = ttk.LabelFrame(frame3, text="film")
lffilm.pack(fill="x", expand="yes")
tk.Radiobutton(lffilm, variable=varImageEffect,
        text='film',value='film',command=cbButtons).pack(anchor=tk.W, side=tk.LEFT)

scFilm_strength_Var = tk.IntVar()
scFilm_strength_Var.set(0)
tk.Scale(lffilm, from_=0, to=255,
    orient=tk.HORIZONTAL, length=200, label="strength",
    variable=scFilm_strength_Var, command=cbScaleSetting).pack(anchor=tk.W, side=tk.LEFT)
scFilm_u_Var = tk.IntVar()
scFilm_u_Var.set(0)
tk.Scale(lffilm, from_=0, to=255,
    orient=tk.HORIZONTAL, length=200, label="u",
    variable=scFilm_u_Var, command=cbScaleSetting).pack(anchor=tk.W, side=tk.LEFT)
scFilm_v_Var = tk.IntVar()
scFilm_v_Var.set(0)
tk.Scale(lffilm, from_=0, to=255,
    orient=tk.HORIZONTAL, length=200, label="v",
    variable=scFilm_v_Var, command=cbScaleSetting).pack(anchor=tk.W, side=tk.LEFT)

lfblur = ttk.LabelFrame(frame3, text="blur")
lfblur.pack(fill="x", expand="yes")
tk.Radiobutton(lfblur, variable=varImageEffect,
        text='blur',value='blur',command=cbButtons).pack(anchor=tk.W, side=tk.LEFT)
scBlur_size_Var = tk.IntVar()
scBlur_size_Var.set(1)
tk.Scale(lfblur, from_=1, to=2,
    orient=tk.HORIZONTAL, length=100, label="size",
    variable=scBlur_size_Var, command=cbScaleSetting).pack(anchor=tk.W, side=tk.LEFT)

lfcolorswap = ttk.LabelFrame(frame3, text="colorswap")
lfcolorswap.pack(fill="x", expand="yes")
tk.Radiobutton(lfcolorswap, variable=varImageEffect,
        text='colorswap',value='colorswap',command=cbButtons).pack(anchor=tk.W, side=tk.LEFT)
cbColorswap_dir_Var = tk.BooleanVar()
cbColorswap_dir_Var.set(False)
tk.Checkbutton(lfcolorswap, text="dir - 0:RGB to BGR/1:RGB to BRG",
    variable=cbColorswap_dir_Var, command=cbButtons).pack(anchor=tk.W, side=tk.LEFT)

lfposterise = ttk.LabelFrame(frame3, text="posterise")
lfposterise.pack(fill="x", expand="yes")
tk.Radiobutton(lfposterise, variable=varImageEffect,
        text='posterise',value='posterise',command=cbButtons).pack(anchor=tk.W, side=tk.LEFT)
scPosterise_steps_Var = tk.IntVar()
scPosterise_steps_Var.set(4)
tk.Scale(lfposterise, from_=2, to=32,
    orient=tk.HORIZONTAL, length=200, label="steps",
    variable=scPosterise_steps_Var, command=cbScaleSetting).pack(anchor=tk.W, side=tk.LEFT)

lfcolorpoint = ttk.LabelFrame(frame3, text="colorpoint")
lfcolorpoint.pack(fill="x", expand="yes")
tk.Radiobutton(lfcolorpoint, variable=varImageEffect,
        text='colorpoint',value='colorpoint',command=cbButtons).pack(anchor=tk.W, side=tk.LEFT)
quadrantVar = tk.IntVar()
quadrantVar.set(0)
tk.Radiobutton(lfcolorpoint, text="green",
    variable=quadrantVar, value=0, command=cbButtons).pack(anchor=tk.W, side=tk.LEFT)
tk.Radiobutton(lfcolorpoint, text="red/yellow",
    variable=quadrantVar, value=1, command=cbButtons).pack(anchor=tk.W, side=tk.LEFT)
tk.Radiobutton(lfcolorpoint, text="blue",
    variable=quadrantVar, value=2, command=cbButtons).pack(anchor=tk.W, side=tk.LEFT)
tk.Radiobutton(lfcolorpoint, text="purple",
    variable=quadrantVar, value=3, command=cbButtons).pack(anchor=tk.W, side=tk.LEFT)

lfcolorbalance = ttk.LabelFrame(frame3, text="colorbalance: I can't see the effect!")
lfcolorbalance.pack(fill="x", expand="yes")
tk.Radiobutton(lfcolorbalance, variable=varImageEffect,
        text='colorbalance',value='colorbalance',command=cbButtons).pack(anchor=tk.W, side=tk.LEFT)

scColorbalance_lens_Var = tk.DoubleVar()
scColorbalance_lens_Var.set(0)
tk.Scale(lfcolorbalance, from_=0, to=256,
    orient=tk.HORIZONTAL, length=140, label="lens",
    variable=scColorbalance_lens_Var, command=cbScaleSetting).pack(anchor=tk.W, side=tk.LEFT)

scColorbalance_r_Var = tk.DoubleVar()
scColorbalance_r_Var.set(1)
tk.Scale(lfcolorbalance, from_=0, to=256,
    orient=tk.HORIZONTAL, length=140, label="r",
    variable=scColorbalance_r_Var, command=cbScaleSetting).pack(anchor=tk.W, side=tk.LEFT)

scColorbalance_g_Var = tk.DoubleVar()
scColorbalance_g_Var.set(1)
tk.Scale(lfcolorbalance, from_=0, to=256,
    orient=tk.HORIZONTAL, length=140, label="g",
    variable=scColorbalance_g_Var, command=cbScaleSetting).pack(anchor=tk.W, side=tk.LEFT)

scColorbalance_b_Var = tk.DoubleVar()
scColorbalance_b_Var.set(1)
tk.Scale(lfcolorbalance, from_=0, to=256,
    orient=tk.HORIZONTAL, length=140, label="b",
    variable=scColorbalance_b_Var, command=cbScaleSetting).pack(anchor=tk.W, side=tk.LEFT)

scColorbalance_u_Var = tk.IntVar()
scColorbalance_u_Var.set(0)
tk.Scale(lfcolorbalance, from_=0, to=255,
    orient=tk.HORIZONTAL, length=140, label="u",
    variable=scColorbalance_u_Var, command=cbScaleSetting).pack(anchor=tk.W, side=tk.LEFT)

scColorbalance_v_Var = tk.IntVar()
scColorbalance_v_Var.set(0)
tk.Scale(lfcolorbalance, from_=0, to=255,
    orient=tk.HORIZONTAL, length=140, label="v",
    variable=scColorbalance_v_Var, command=cbScaleSetting).pack(anchor=tk.W, side=tk.LEFT)

#=======================================
print("start")
startCamHandler()

tk.mainloop()


Download the Python script HERE.


updated@2016-04-15:
Current Raspbian Jessie come with PIL installed by default, but no ImageTk. If you run Python script reported with error:
ImportError: cannot import name ImageTk

Install python-imaging-tk
$ sudo apt-get install python-imaging-tk


No comments:
