Modify Raspberry Pi 2 case to add 52mm filter mount

Just bought a Pi NoIR (Infrared version of Camera Module). Then I want to test the effect of infrared photo with Hoya R72 filter (for Infrared Photography to blocks Visible Light Up To 720nm). So I have to add a 52mm filter mount on the Raspberry Pi 2 case.


52mm Hoya R72 Infrared filter:



Attract something like Blu-Tack on a 27-52mm  conversion ring:


Stick on RPi 2 case:



So I can install 52mm Hoya R72 filter on:
\

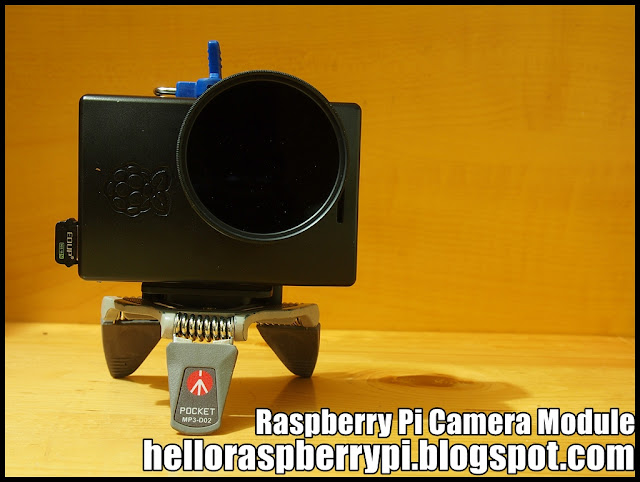

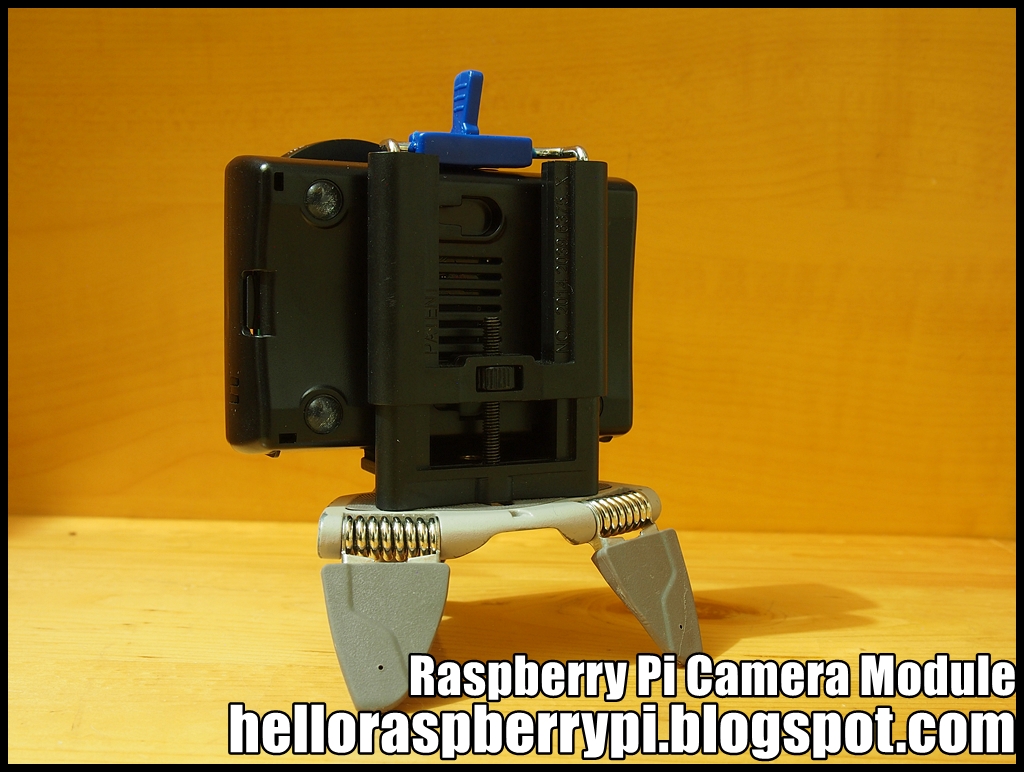

Finished:






~ Photo samples: Next - Pi NoIR photo samples (without and with Hoya R72 filter)
